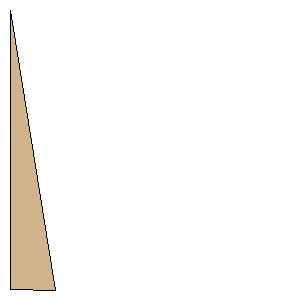

Asp Trapezoid Fin Set Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Basswood |
Download as PDF | Root Chord: | 6.2310 inches (158.2674 mm) | | Tip Chord: | 0.0000 inches (0.0000 mm) | | Sweep Distance: | 6.2330 inches (158.3182 mm) | | SemiSpan: | 1.0140 inches (25.7556 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (25.7556 mm, 158.3182 mm) | | Point 3: | (25.7556 mm, 158.3182 mm) | | Point 4: | (0.0000 mm, 158.2674 mm) | | Width: | 1.0140 inches (25.7556 mm) | | Height: | 6.2330 inches (158.3182 mm) |
