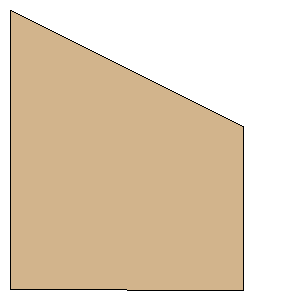

Mini Endeavour Trapezoid Fin Set Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Basswood |
Download as PDF | Root Chord: | 1.0920 inches (27.7368 mm) | | Tip Chord: | 0.6370 inches (16.1798 mm) | | Sweep Distance: | 0.4551 inches (11.5595 mm) | | SemiSpan: | 0.9100 inches (23.1140 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (23.1140 mm, 11.5595 mm) | | Point 3: | (23.1140 mm, 27.7393 mm) | | Point 4: | (0.0000 mm, 27.7368 mm) | | Width: | 0.9100 inches (23.1140 mm) | | Height: | 1.0921 inches (27.7393 mm) |
