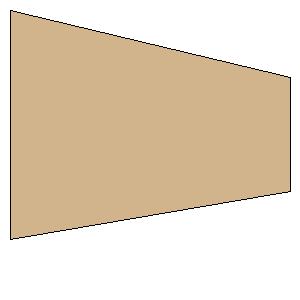

Sounder II Trapezoid Fin Set Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Basswood |
Download as PDF | Root Chord: | 3.2740 inches (83.1596 mm) | | Tip Chord: | 1.6370 inches (41.5798 mm) | | Sweep Distance: | 0.9603 inches (24.3916 mm) | | SemiSpan: | 4.0000 inches (101.6000 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (101.6000 mm, 24.3916 mm) | | Point 3: | (101.6000 mm, 65.9714 mm) | | Point 4: | (0.0000 mm, 83.1596 mm) | | Width: | 4.0000 inches (101.6000 mm) | | Height: | 3.2740 inches (83.1596 mm) |
