Rocketry Parts Database >> Fins >>

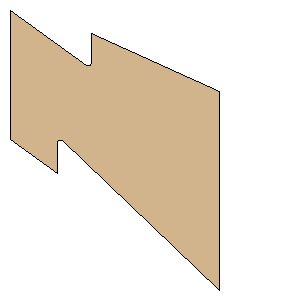

Lightning Strike Freeform Fin Se Freeform Fin Set

Manufacturer:Custom
Part Number:
Style:Freeform Fin Set
Material:Basswood

Download as PDF

Point 1:(0.0000 mm, 70.9700 mm)
Point 2:(26.0822 mm, 89.7350 mm)
Point 3:(26.0822 mm, 72.8237 mm)
Point 4:(26.5123 mm, 71.7724 mm)
Point 5:(27.5559 mm, 71.3239 mm)
Point 6:(28.6146 mm, 71.7355 mm)
Point 7:(114.6713 mm, 153.5945 mm)
Point 8:(114.6710 mm, 44.4402 mm)
Point 9:(44.5000 mm, 12.6800 mm)
Point 10:(44.5325 mm, 29.2603 mm)
Point 11:(44.1493 mm, 30.2646 mm)
Point 12:(42.1536 mm, 30.4788 mm)
Point 13:(0.0000 mm, 0.0000 mm)
Width:4.5146 inches (114.6713 mm)
Height:6.0470 inches (153.5945 mm)
