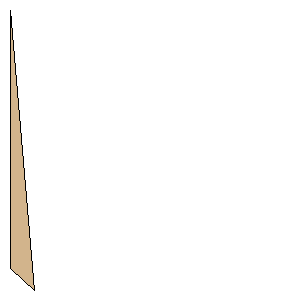

Purple Haze Trapezoid Fin Set Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Basswood |
Download as PDF | Root Chord: | 8.0000 inches (203.2000 mm) | | Tip Chord: | 0.0000 inches (0.0000 mm) | | Sweep Distance: | 8.6596 inches (219.9538 mm) | | SemiSpan: | 0.7500 inches (19.0500 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (19.0500 mm, 219.9538 mm) | | Point 3: | (19.0500 mm, 219.9538 mm) | | Point 4: | (0.0000 mm, 203.2000 mm) | | Width: | 0.7500 inches (19.0500 mm) | | Height: | 8.6596 inches (219.9538 mm) |
