Aerospace Speciality Products Eg Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Basswood |

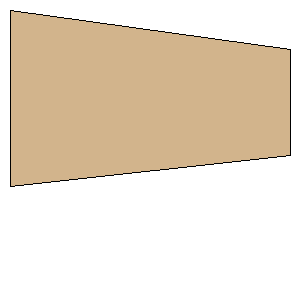

Download as PDF | Root Chord: | 1.2563 inches (31.9100 mm) | | Tip Chord: | 0.7551 inches (19.1795 mm) | | Sweep Distance: | 0.2828 inches (7.1831 mm) | | SemiSpan: | 1.9917 inches (50.5892 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (50.5892 mm, 7.1831 mm) | | Point 3: | (50.5892 mm, 26.3627 mm) | | Point 4: | (0.0000 mm, 31.9100 mm) | | Width: | 1.9917 inches (50.5892 mm) | | Height: | 1.2563 inches (31.9100 mm) |
