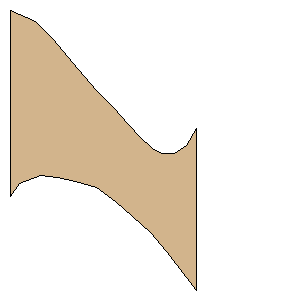

Rocksim 9 file Freeform Fin Set Freeform Fin Set

Manufacturer:Custom
Part Number:
Style:Freeform Fin Set
Material:Basswood

Download as PDF

Point 1:(0.0000 mm, 66.0400 mm)
Point 2:(3.4634 mm, 61.1364 mm)
Point 3:(10.7895 mm, 58.5220 mm)
Point 4:(16.9384 mm, 58.9950 mm)
Point 5:(23.0872 mm, 60.4140 mm)
Point 6:(30.6551 mm, 62.7789 mm)
Point 7:(37.2769 mm, 67.5088 mm)
Point 8:(43.1007 mm, 72.8881 mm)
Point 9:(49.6138 mm, 78.6349 mm)
Point 10:(55.3606 mm, 85.1480 mm)
Point 11:(66.0400 mm, 98.8865 mm)
Point 12:(66.0400 mm, 41.9100 mm)
Point 13:(62.2568 mm, 47.9852 mm)
Point 14:(58.0425 mm, 50.6671 mm)
Point 15:(53.8281 mm, 50.6671 mm)
Point 16:(50.3800 mm, 48.7515 mm)
Point 17:(45.7826 mm, 44.5372 mm)
Point 18:(41.9514 mm, 40.3228 mm)
Point 19:(36.5877 mm, 34.5760 mm)
Point 20:(30.4577 mm, 28.4461 mm)
Point 21:(22.0291 mm, 18.4849 mm)
Point 22:(15.1329 mm, 10.0562 mm)
Point 23:(8.8335 mm, 4.2168 mm)
Point 24:(0.0000 mm, 0.0000 mm)
Width:2.6000 inches (66.0400 mm)
Height:3.8932 inches (98.8865 mm)
