Rocketry Parts Database >> Fins >>

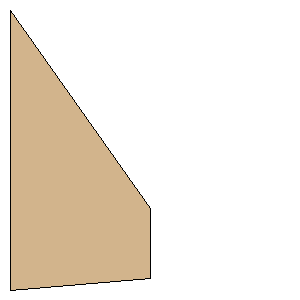

mods_loc_onyx_stretch.rkt Trapez Trapezoid Fin Set

Manufacturer:Custom
Part Number:
Style:Trapezoid Fin Set
Material:Basswood

Download as PDF

Root Chord:6.0000 inches (152.4000 mm)
Tip Chord:1.5000 inches (38.1000 mm)
Sweep Distance:4.2500 inches (107.9500 mm)
SemiSpan:3.0000 inches (76.2000 mm)
Point 1:(0.0000 mm, 0.0000 mm)
Point 2:(76.2000 mm, 107.9500 mm)
Point 3:(76.2000 mm, 146.0500 mm)
Point 4:(0.0000 mm, 152.4000 mm)
Width:3.0000 inches (76.2000 mm)
Height:6.0000 inches (152.4000 mm)
