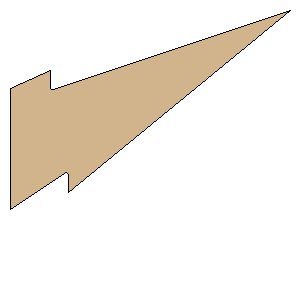

Lightning Strike Freeform Fin Se Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Basswood |
Download as PDF | Point 1: | (0.0000 mm, 75.9600 mm) | | Point 2: | (34.4814 mm, 53.2355 mm) | | Point 3: | (35.5089 mm, 53.0017 mm) | | Point 4: | (36.4366 mm, 53.5014 mm) | | Point 5: | (36.8068 mm, 54.4880 mm) | | Point 6: | (36.8068 mm, 65.1260 mm) | | Point 7: | (176.4343 mm, -49.5900 mm) | | Point 8: | (27.4495 mm, 0.4144 mm) | | Point 9: | (26.5179 mm, 0.4219 mm) | | Point 10: | (25.7615 mm, -0.1221 mm) | | Point 11: | (25.4722 mm, -1.0077 mm) | | Point 12: | (25.4722 mm, -11.5870 mm) | | Point 13: | (0.0000 mm, 0.0000 mm) | | Width: | 6.9462 inches (176.4343 mm) | | Height: | 4.9429 inches (125.5500 mm) |
