Rocketry Parts Database >> Fins >>

Saturn V Trapezoid Fin Set Trapezoid Fin Set

Manufacturer:Custom
Part Number:
Style:Trapezoid Fin Set
Material:Basswood

Download as PDF

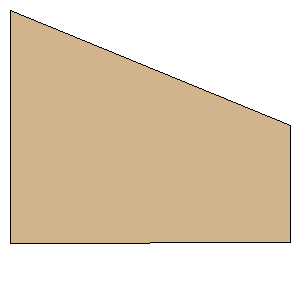

Root Chord:1.2500 inches (31.7500 mm)
Tip Chord:0.6250 inches (15.8750 mm)
Sweep Distance:0.6210 inches (15.7734 mm)
SemiSpan:1.5000 inches (38.1000 mm)
Point 1:(0.0000 mm, 0.0000 mm)
Point 2:(38.1000 mm, 15.7734 mm)
Point 3:(38.1000 mm, 31.6484 mm)
Point 4:(0.0000 mm, 31.7500 mm)
Width:1.5000 inches (38.1000 mm)
Height:1.2500 inches (31.7500 mm)
