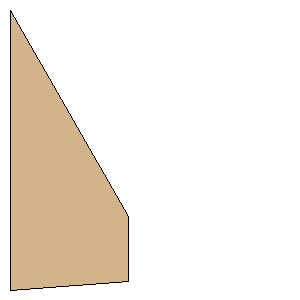

Aardvark Rockets SH-5 Griffon Tr Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Basswood |
Download as PDF | Root Chord: | 4.0820 inches (103.6828 mm) | | Tip Chord: | 0.9530 inches (24.2062 mm) | | Sweep Distance: | 3.0060 inches (76.3524 mm) | | SemiSpan: | 1.7320 inches (43.9928 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (43.9928 mm, 76.3524 mm) | | Point 3: | (43.9928 mm, 100.5586 mm) | | Point 4: | (0.0000 mm, 103.6828 mm) | | Width: | 1.7320 inches (43.9928 mm) | | Height: | 4.0820 inches (103.6828 mm) |
