AIM-4C Falcon Trapezoid Fin Set Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Basswood |

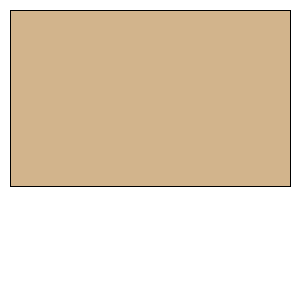

Download as PDF | Root Chord: | 0.7320 inches (18.5928 mm) | | Tip Chord: | 0.7320 inches (18.5928 mm) | | Sweep Distance: | 0.0000 inches (0.0000 mm) | | SemiSpan: | 1.1590 inches (29.4386 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (29.4386 mm, 0.0000 mm) | | Point 3: | (29.4386 mm, 18.5928 mm) | | Point 4: | (0.0000 mm, 18.5928 mm) | | Width: | 1.1590 inches (29.4386 mm) | | Height: | 0.7320 inches (18.5928 mm) |
