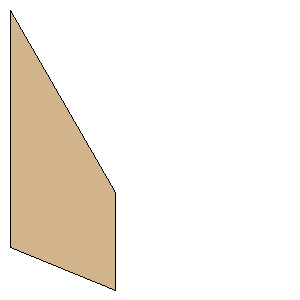

Aardvark Rockets Astrobee D Trap Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Basswood |
Download as PDF | Root Chord: | 3.3050 inches (83.9470 mm) | | Tip Chord: | 1.3530 inches (34.3662 mm) | | Sweep Distance: | 2.5360 inches (64.4144 mm) | | SemiSpan: | 1.4640 inches (37.1856 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (37.1856 mm, 64.4144 mm) | | Point 3: | (37.1856 mm, 98.7806 mm) | | Point 4: | (0.0000 mm, 83.9470 mm) | | Width: | 1.4640 inches (37.1856 mm) | | Height: | 3.8890 inches (98.7806 mm) |
