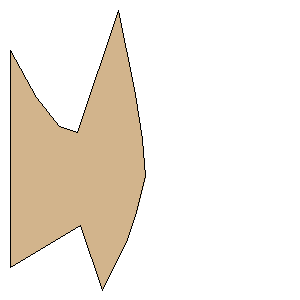

Micro-Darmok Freeform Fin Set Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Birch |
Download as PDF | Point 1: | (0.0000 mm, 25.4000 mm) | | Point 2: | (8.2741 mm, 20.4464 mm) | | Point 3: | (10.7982 mm, 28.0187 mm) | | Point 4: | (13.7998 mm, 22.0801 mm) | | Point 5: | (14.8368 mm, 18.9319 mm) | | Point 6: | (15.8464 mm, 14.7250 mm) | | Point 7: | (15.5099 mm, 10.3499 mm) | | Point 8: | (14.6685 mm, 5.1333 mm) | | Point 9: | (12.7000 mm, -4.7625 mm) | | Point 10: | (7.8740 mm, 9.5250 mm) | | Point 11: | (5.7499 mm, 8.8354 mm) | | Point 12: | (3.0575 mm, 5.4699 mm) | | Point 13: | (0.0000 mm, 0.0000 mm) | | Width: | 1.0000 inches (25.4000 mm) | | Height: | 1.2906 inches (32.7812 mm) |
