Rocketry Parts Database >> Fins >>

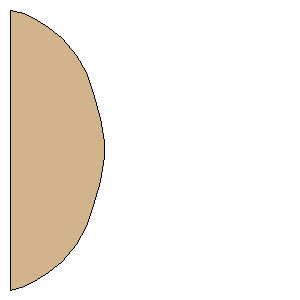

Lunar Eclipse (Final).rkt Freefo Freeform Fin Set

Manufacturer:Custom
Part Number:
Style:Freeform Fin Set
Material:Birch Plywood (Revell)

Download as PDF

Point 1:(0.0000 mm, 63.5000 mm)
Point 2:(3.1750 mm, 62.7063 mm)
Point 3:(6.3500 mm, 61.1188 mm)
Point 4:(8.7313 mm, 59.5313 mm)
Point 5:(11.9063 mm, 57.1500 mm)
Point 6:(15.0813 mm, 53.1813 mm)
Point 7:(17.4625 mm, 49.2125 mm)
Point 8:(19.0500 mm, 44.4500 mm)
Point 9:(20.6375 mm, 38.8938 mm)
Point 10:(21.4313 mm, 33.3375 mm)
Point 11:(21.4313 mm, 30.1625 mm)
Point 12:(20.6375 mm, 24.6063 mm)
Point 13:(19.0500 mm, 19.0500 mm)
Point 14:(17.4625 mm, 14.2875 mm)
Point 15:(15.0813 mm, 10.3188 mm)
Point 16:(11.9063 mm, 6.3500 mm)
Point 17:(8.7313 mm, 3.9688 mm)
Point 18:(6.3500 mm, 2.3813 mm)
Point 19:(3.1750 mm, 0.7938 mm)
Point 20:(0.0000 mm, 0.0000 mm)
Width:2.5000 inches (63.5000 mm)
Height:2.5000 inches (63.5000 mm)
