Rocketry Parts Database >> Fins >>

Andromeda Trapezoid Fin Set Trapezoid Fin Set

Manufacturer:Custom
Part Number:
Style:Trapezoid Fin Set
Material:Birch

Download as PDF

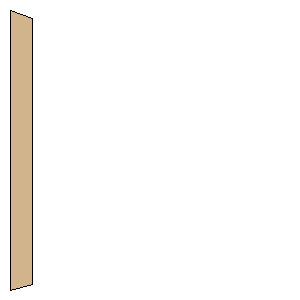

Root Chord:23.5000 inches (596.9000 mm)
Tip Chord:22.2500 inches (565.1500 mm)
Sweep Distance:0.7500 inches (19.0500 mm)
SemiSpan:1.8750 inches (47.6250 mm)
Point 1:(0.0000 mm, 0.0000 mm)
Point 2:(47.6250 mm, 19.0500 mm)
Point 3:(47.6250 mm, 584.2000 mm)
Point 4:(0.0000 mm, 596.9000 mm)
Width:1.8750 inches (47.6250 mm)
Height:23.5000 inches (596.9000 mm)
