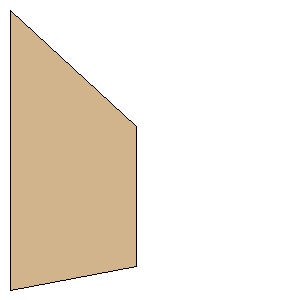

scratch_emrr_2stage_challenge.rk Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Birch |
Download as PDF | Root Chord: | 5.2600 inches (133.6040 mm) | | Tip Chord: | 2.6300 inches (66.8020 mm) | | Sweep Distance: | 2.1954 inches (55.7632 mm) | | SemiSpan: | 2.3750 inches (60.3250 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (60.3250 mm, 55.7632 mm) | | Point 3: | (60.3250 mm, 122.5652 mm) | | Point 4: | (0.0000 mm, 133.6040 mm) | | Width: | 2.3750 inches (60.3250 mm) | | Height: | 5.2600 inches (133.6040 mm) |
