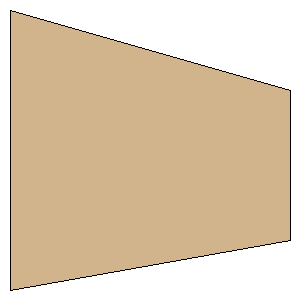

Binder Design Thug 38mm Trapezoi Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Birch |
Download as PDF | Root Chord: | 3.5000 inches (88.9000 mm) | | Tip Chord: | 1.8750 inches (47.6250 mm) | | Sweep Distance: | 1.0000 inches (25.4000 mm) | | SemiSpan: | 3.5000 inches (88.9000 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (88.9000 mm, 25.4000 mm) | | Point 3: | (88.9000 mm, 73.0250 mm) | | Point 4: | (0.0000 mm, 88.9000 mm) | | Width: | 3.5000 inches (88.9000 mm) | | Height: | 3.5000 inches (88.9000 mm) |
