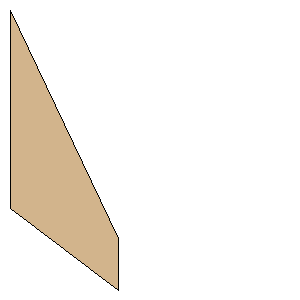

binder_design_raptor_54mm.rkt Tr Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Birch |
Download as PDF | Root Chord: | 7.7500 inches (196.8500 mm) | | Tip Chord: | 2.0000 inches (50.8000 mm) | | Sweep Distance: | 8.9320 inches (226.8728 mm) | | SemiSpan: | 4.2500 inches (107.9500 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (107.9500 mm, 226.8728 mm) | | Point 3: | (107.9500 mm, 277.6728 mm) | | Point 4: | (0.0000 mm, 196.8500 mm) | | Width: | 4.2500 inches (107.9500 mm) | | Height: | 10.9320 inches (277.6728 mm) |
