Rocketry Parts Database >> Fins >>

Estes SDI Satellite Trapezoid Fi Trapezoid Fin Set

Manufacturer:Custom by D.S.
Part Number:DS-FIN-001
Style:Trapezoid Fin Set
Material:Paper

Download as PDF

Root Chord:2.2500 inches (57.1500 mm)
Tip Chord:2.2500 inches (57.1500 mm)
Sweep Distance:0.0000 inches (0.0000 mm)
SemiSpan:0.7500 inches (19.0500 mm)

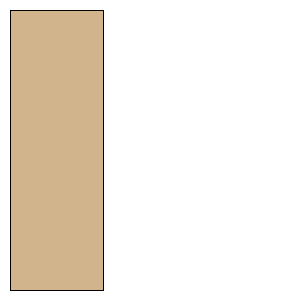

Point 1:(0.0000 mm, 0.0000 mm)
Point 2:(19.0500 mm, 0.0000 mm)
Point 3:(19.0500 mm, 57.1500 mm)
Point 4:(0.0000 mm, 57.1500 mm)
Width:0.7500 inches (19.0500 mm)
Height:2.2500 inches (57.1500 mm)
