Semroc-Satellite Killer.rkt Free Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Cardboard |

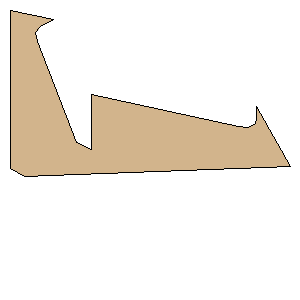

Download as PDF | Point 1: | (0.0000 mm, 73.1012 mm) | | Point 2: | (6.5786 mm, 76.6572 mm) | | Point 3: | (129.2860 mm, 72.3646 mm) | | Point 4: | (113.8680 mm, 44.5262 mm) | | Point 5: | (113.6900 mm, 45.0850 mm) | | Point 6: | (113.6900 mm, 50.4190 mm) | | Point 7: | (113.2080 mm, 52.4256 mm) | | Point 8: | (109.9570 mm, 54.0512 mm) | | Point 9: | (105.4100 mm, 53.8226 mm) | | Point 10: | (37.4396 mm, 39.0652 mm) | | Point 11: | (37.4396 mm, 64.4906 mm) | | Point 12: | (30.8102 mm, 61.0362 mm) | | Point 13: | (12.4714 mm, 14.4526 mm) | | Point 14: | (11.9634 mm, 10.5918 mm) | | Point 15: | (14.1478 mm, 7.5184 mm) | | Point 16: | (20.0152 mm, 4.2926 mm) | | Point 17: | (0.0000 mm, 0.0000 mm) | | Width: | 5.0900 inches (129.2860 mm) | | Height: | 3.0180 inches (76.6572 mm) |
