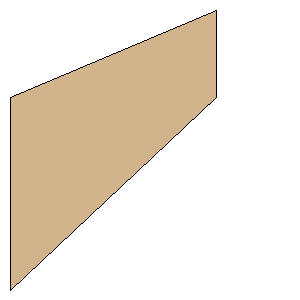

estes_blackdiamond_rtf.rkt Trape Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Cardboard |
Download as PDF | Root Chord: | 1.3750 inches (34.9250 mm) | | Tip Chord: | 0.6250 inches (15.8750 mm) | | Sweep Distance: | -0.6250 inches (-15.8750 mm) | | SemiSpan: | 1.4720 inches (37.3888 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (37.3888 mm, -15.8750 mm) | | Point 3: | (37.3888 mm, 0.0000 mm) | | Point 4: | (0.0000 mm, 34.9250 mm) | | Width: | 1.4720 inches (37.3888 mm) | | Height: | 2.0000 inches (50.8000 mm) |
