Estes Colonial Viper Trapezoid F Trapezoid Fin Set

Manufacturer:Custom
Part Number:
Style:Trapezoid Fin Set
Material:Cardboard

Download as PDF

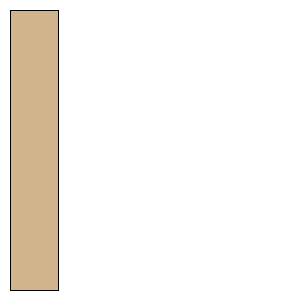

Root Chord:2.8750 inches (73.0250 mm)
Tip Chord:2.8750 inches (73.0250 mm)
Sweep Distance:0.0000 inches (0.0000 mm)
SemiSpan:0.5000 inches (12.7000 mm)
Point 1:(0.0000 mm, 0.0000 mm)
Point 2:(12.7000 mm, 0.0000 mm)
Point 3:(12.7000 mm, 73.0250 mm)
Point 4:(0.0000 mm, 73.0250 mm)
Width:0.5000 inches (12.7000 mm)
Height:2.8750 inches (73.0250 mm)
