Rocketry Parts Database >> Fins >>

Custom Fiberglass Trapezoid Fin Set

Manufacturer:Custom
Part Number:
Style:Trapezoid Fin Set
Material:Fiberglass

Download as PDF

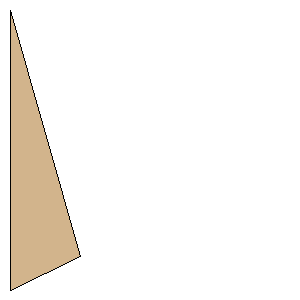

Root Chord:12.5197 inches (318.0004 mm)
Tip Chord:0.0000 inches (0.0000 mm)
Sweep Distance:11.0236 inches (279.9994 mm)
SemiSpan:3.1496 inches (79.9998 mm)
Point 1:(0.0000 mm, 0.0000 mm)
Point 2:(79.9998 mm, 279.9994 mm)
Point 3:(79.9998 mm, 279.9994 mm)
Point 4:(0.0000 mm, 318.0004 mm)
Width:3.1496 inches (79.9998 mm)
Height:12.5197 inches (318.0004 mm)
