Rocketry Parts Database >> Fins >>

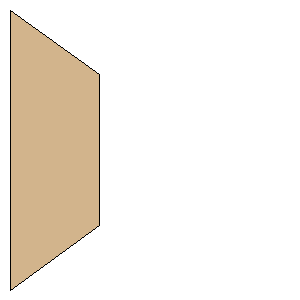

Rocksim File Trapezoid Fin Set Trapezoid Fin Set

Manufacturer:Custom
Part Number:
Style:Trapezoid Fin Set
Material:Fiberglass

Download as PDF

Root Chord:8.6250 inches (219.0750 mm)
Tip Chord:4.6250 inches (117.4750 mm)
Sweep Distance:2.0000 inches (50.8000 mm)
SemiSpan:2.7500 inches (69.8500 mm)
Point 1:(0.0000 mm, 0.0000 mm)
Point 2:(69.8500 mm, 50.8000 mm)
Point 3:(69.8500 mm, 168.2750 mm)
Point 4:(0.0000 mm, 219.0750 mm)
Width:2.7500 inches (69.8500 mm)
Height:8.6250 inches (219.0750 mm)
