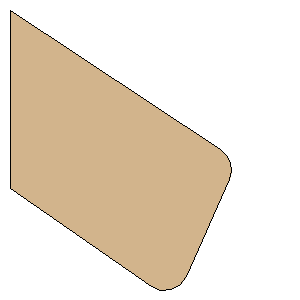

Javelin Freeform Fin Set Freeform Fin Set

Manufacturer:Custom
Part Number:
Style:Freeform Fin Set
Material:Fiberglass

Download as PDF

Point 1:(0.0000 mm, 47.5169 mm)
Point 2:(37.5021 mm, 73.3993 mm)
Point 3:(40.0695 mm, 74.4374 mm)
Point 4:(42.8346 mm, 74.2841 mm)
Point 5:(45.2715 mm, 72.9685 mm)
Point 6:(46.9167 mm, 70.7408 mm)
Point 7:(58.2887 mm, 45.0200 mm)
Point 8:(58.8243 mm, 42.8673 mm)
Point 9:(58.5868 mm, 40.6617 mm)
Point 10:(57.6050 mm, 38.6724 mm)
Point 11:(55.9990 mm, 37.1422 mm)
Point 12:(0.0000 mm, 0.0000 mm)
Width:2.3159 inches (58.8243 mm)
Height:2.9306 inches (74.4374 mm)
