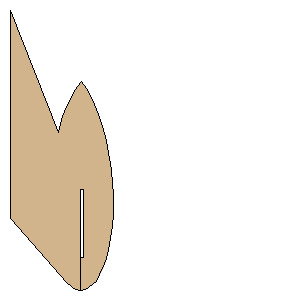

Circulus 3in V2(Final).rkt Freef Freeform Fin Set

Manufacturer:Custom
Part Number:
Style:Freeform Fin Set
Material:Fir (Douglas)

Download as PDF

Point 1:(0.0000 mm, 127.0002 mm)
Point 2:(50.0063 mm, 184.1501 mm)
Point 3:(53.9750 mm, 187.3251 mm)
Point 4:(57.9438 mm, 189.7063 mm)
Point 5:(62.6872 mm, 190.5000 mm)
Point 6:(62.6872 mm, 161.9250 mm)
Point 7:(62.7063 mm, 101.6000 mm)
Point 8:(65.4050 mm, 101.6000 mm)
Point 9:(65.4050 mm, 161.9250 mm)
Point 10:(62.7063 mm, 161.9250 mm)
Point 11:(62.7063 mm, 190.5000 mm)
Point 12:(66.6750 mm, 189.7063 mm)
Point 13:(69.8500 mm, 188.1188 mm)
Point 14:(73.0250 mm, 185.7376 mm)
Point 15:(76.2000 mm, 182.5626 mm)
Point 16:(79.3750 mm, 177.0063 mm)
Point 17:(82.5500 mm, 169.8626 mm)
Point 18:(84.9313 mm, 162.7188 mm)
Point 19:(87.3125 mm, 154.7813 mm)
Point 20:(88.9000 mm, 145.2563 mm)
Point 21:(90.4875 mm, 133.3500 mm)
Point 22:(91.2813 mm, 123.8250 mm)
Point 23:(91.2813 mm, 107.1563 mm)
Point 24:(90.4875 mm, 95.2500 mm)
Point 25:(89.6938 mm, 85.7250 mm)
Point 26:(88.9000 mm, 78.5813 mm)
Point 27:(87.3125 mm, 69.8500 mm)
Point 28:(84.9313 mm, 57.9438 mm)
Point 29:(81.7563 mm, 46.0375 mm)
Point 30:(78.1050 mm, 35.5600 mm)
Point 31:(74.6125 mm, 26.1938 mm)
Point 32:(71.1200 mm, 19.0500 mm)
Point 33:(67.4688 mm, 11.9063 mm)
Point 34:(63.5000 mm, 6.3500 mm)
Point 35:(57.9438 mm, 13.4938 mm)
Point 36:(53.9750 mm, 20.6375 mm)
Point 37:(50.0063 mm, 28.5750 mm)
Point 38:(46.8313 mm, 37.3063 mm)
Point 39:(44.4500 mm, 44.4500 mm)
Point 40:(42.8625 mm, 50.8000 mm)
Point 41:(0.0000 mm, -57.1500 mm)
Point 42:(0.0000 mm, 0.0000 mm)
Width:5.0000 inches (127.0002 mm)
Height:9.7500 inches (247.6500 mm)
