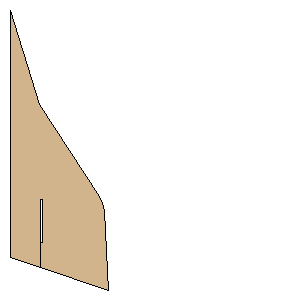

Paradox (Final).rkt Freeform Fin Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Fir (Douglas) |
Download as PDF | Point 1: | (0.0000 mm, 215.9001 mm) | | Point 2: | (26.9748 mm, 224.6313 mm) | | Point 3: | (26.9748 mm, 203.2000 mm) | | Point 4: | (26.9875 mm, 165.1000 mm) | | Point 5: | (28.4480 mm, 165.1000 mm) | | Point 6: | (28.4480 mm, 203.2000 mm) | | Point 7: | (26.9875 mm, 203.2000 mm) | | Point 8: | (26.9875 mm, 224.6313 mm) | | Point 9: | (85.7250 mm, 244.4751 mm) | | Point 10: | (82.5501 mm, 176.2126 mm) | | Point 11: | (80.9625 mm, 169.0688 mm) | | Point 12: | (77.7875 mm, 162.7188 mm) | | Point 13: | (25.4000 mm, 82.5500 mm) | | Point 14: | (0.0000 mm, 0.0000 mm) | | Width: | 8.5000 inches (215.9001 mm) | | Height: | 9.6250 inches (244.4751 mm) |
