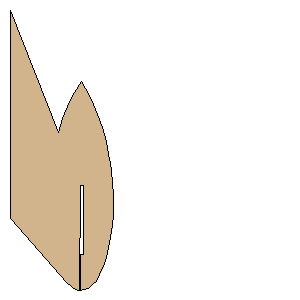

3D Rocketry Circulus 3 Freeform Freeform Fin Set

Manufacturer:Custom
Part Number:
Style:Freeform Fin Set
Material:Fir (Douglas)

Download as PDF

Point 1:(0.0000 mm, 127.0002 mm)
Point 2:(50.0063 mm, 184.1500 mm)
Point 3:(53.9750 mm, 187.3250 mm)
Point 4:(57.9438 mm, 189.7063 mm)
Point 5:(61.9125 mm, 190.5000 mm)
Point 6:(61.9125 mm, 98.4250 mm)
Point 7:(65.0875 mm, 98.4250 mm)
Point 8:(65.0875 mm, 158.7501 mm)
Point 9:(61.9506 mm, 158.7501 mm)
Point 10:(61.9506 mm, 190.5000 mm)
Point 11:(65.8813 mm, 189.7063 mm)
Point 12:(69.0563 mm, 188.9125 mm)
Point 13:(73.0250 mm, 185.7375 mm)
Point 14:(76.2000 mm, 182.5625 mm)
Point 15:(79.3750 mm, 177.0063 mm)
Point 16:(82.5500 mm, 169.8626 mm)
Point 17:(84.9313 mm, 161.9251 mm)
Point 18:(87.3125 mm, 153.1938 mm)
Point 19:(88.9000 mm, 144.4625 mm)
Point 20:(90.4875 mm, 133.3500 mm)
Point 21:(91.2813 mm, 123.8250 mm)
Point 22:(91.2813 mm, 107.1563 mm)
Point 23:(90.4875 mm, 95.2500 mm)
Point 24:(89.6938 mm, 85.7250 mm)
Point 25:(88.9000 mm, 78.5813 mm)
Point 26:(87.3125 mm, 70.6438 mm)
Point 27:(84.9313 mm, 59.5313 mm)
Point 28:(81.7563 mm, 46.8313 mm)
Point 29:(77.7875 mm, 35.7188 mm)
Point 30:(73.8188 mm, 26.1938 mm)
Point 31:(70.6438 mm, 19.0500 mm)
Point 32:(66.6750 mm, 11.9063 mm)
Point 33:(63.5000 mm, 6.3500 mm)
Point 34:(58.7375 mm, 13.4938 mm)
Point 35:(54.7688 mm, 20.6375 mm)
Point 36:(50.8000 mm, 28.5750 mm)
Point 37:(46.8313 mm, 38.8938 mm)
Point 38:(42.8625 mm, 50.8000 mm)
Point 39:(0.0000 mm, -57.1500 mm)
Point 40:(0.0000 mm, 0.0000 mm)
Width:5.0000 inches (127.0002 mm)
Height:9.7500 inches (247.6501 mm)
