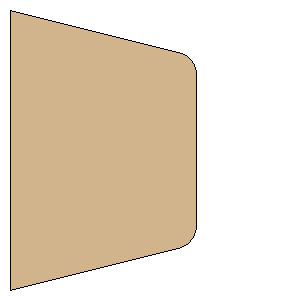

IQ Freeform Fin Set Freeform Fin Set

Manufacturer:Custom
Part Number:
Style:Freeform Fin Set
Material:Fir (Douglas)

Download as PDF

Point 1:(0.0000 mm, 152.4000 mm)
Point 2:(91.9599 mm, 129.5710 mm)
Point 3:(93.5644 mm, 129.0575 mm)
Point 4:(95.0868 mm, 128.3362 mm)
Point 5:(96.5004 mm, 127.4198 mm)
Point 6:(97.7802 mm, 126.3243 mm)
Point 7:(98.9038 mm, 125.0691 mm)
Point 8:(99.8513 mm, 123.6762 mm)
Point 9:(100.6062 mm, 122.1701 mm)
Point 10:(101.1550 mm, 120.5774 mm)
Point 11:(101.4883 mm, 118.9260 mm)
Point 12:(101.6000 mm, 117.2451 mm)
Point 13:(101.6000 mm, 35.3159 mm)
Point 14:(101.4885 mm, 33.6370 mm)
Point 15:(101.1561 mm, 31.9876 mm)
Point 16:(100.6086 mm, 30.3966 mm)
Point 17:(99.8555 mm, 28.8920 mm)
Point 18:(98.9102 mm, 27.5001 mm)
Point 19:(97.7892 mm, 26.2454 mm)
Point 20:(96.5121 mm, 25.1499 mm)
Point 21:(95.1014 mm, 24.2329 mm)
Point 22:(91.9802 mm, 22.9951 mm)
Point 23:(0.0000 mm, 0.0000 mm)
Width:6.0000 inches (152.4000 mm)
Height:6.0000 inches (152.4000 mm)
