Rocketry Parts Database >> Fins >>

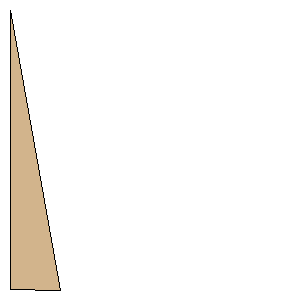

R & D ASP Trapezoid Fin Set Trapezoid Fin Set

Manufacturer:Custom
Part Number:
Style:Trapezoid Fin Set
Material:Fir (Douglas)

Download as PDF

Root Chord:23.5000 inches (596.9000 mm)
Tip Chord:0.0000 inches (0.0000 mm)
Sweep Distance:23.5028 inches (596.9711 mm)
SemiSpan:4.2500 inches (107.9500 mm)
Point 1:(0.0000 mm, 0.0000 mm)
Point 2:(107.9500 mm, 596.9711 mm)
Point 3:(107.9500 mm, 596.9711 mm)
Point 4:(0.0000 mm, 596.9000 mm)
Width:4.2500 inches (107.9500 mm)
Height:23.5028 inches (596.9711 mm)
