Rocketry Parts Database >> Fins >>

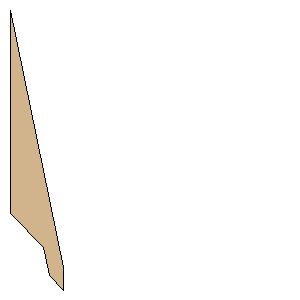

warrior.rkt Freeform Fin Set Freeform Fin Set

Manufacturer:Custom
Part Number:
Style:Freeform Fin Set
Material:G10 Fiberglass

Download as PDF

Point 1:(0.0000 mm, 228.2150 mm)
Point 2:(38.1000 mm, 266.7000 mm)
Point 3:(44.4500 mm, 298.4500 mm)
Point 4:(60.3250 mm, 314.3250 mm)
Point 5:(60.3250 mm, 288.9250 mm)
Point 6:(0.0000 mm, 0.0000 mm)
Width:8.9848 inches (228.2150 mm)
Height:12.3750 inches (314.3250 mm)
