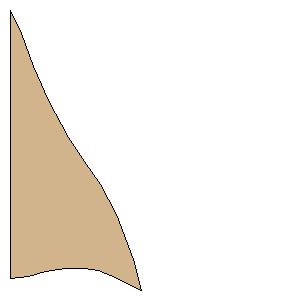

Landshark Freeform Fin Set Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | G10 fiberglass |
Download as PDF | Point 1: | (0.0000 mm, 293.0090 mm) | | Point 2: | (20.0691 mm, 289.9980 mm) | | Point 3: | (39.1347 mm, 284.9810 mm) | | Point 4: | (60.2073 mm, 281.9710 mm) | | Point 5: | (80.7155 mm, 281.9710 mm) | | Point 6: | (96.7708 mm, 283.9780 mm) | | Point 7: | (117.3040 mm, 293.0090 mm) | | Point 8: | (143.3690 mm, 305.0500 mm) | | Point 9: | (134.3380 mm, 271.9360 mm) | | Point 10: | (116.3010 mm, 222.7670 mm) | | Point 11: | (98.6899 mm, 189.6530 mm) | | Point 12: | (81.6312 mm, 164.5670 mm) | | Point 13: | (63.5690 mm, 138.4770 mm) | | Point 14: | (42.1451 mm, 98.3385 mm) | | Point 15: | (26.0898 mm, 61.2107 mm) | | Point 16: | (12.0415 mm, 26.0898 mm) | | Point 17: | (0.0000 mm, 0.0000 mm) | | Width: | 11.5358 inches (293.0090 mm) | | Height: | 12.0098 inches (305.0500 mm) |
