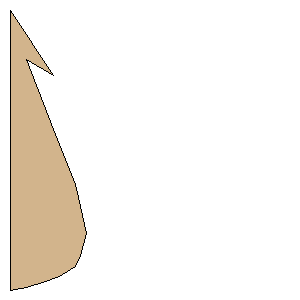

rocketman_thunderchicken_bluegoo Freeform Fin Set

Manufacturer:Custom
Part Number:
Style:Freeform Fin Set
Material:G10 fiberglass

Download as PDF

Point 1:(0.0000 mm, 326.3419 mm)
Point 2:(19.0500 mm, 323.8500 mm)
Point 3:(38.1000 mm, 317.5000 mm)
Point 4:(57.1500 mm, 311.1500 mm)
Point 5:(76.2000 mm, 298.4500 mm)
Point 6:(82.5500 mm, 285.7500 mm)
Point 7:(88.9000 mm, 260.3500 mm)
Point 8:(82.5500 mm, 228.6000 mm)
Point 9:(76.2000 mm, 203.2000 mm)
Point 10:(50.8000 mm, 139.7000 mm)
Point 11:(19.0500 mm, 57.1500 mm)
Point 12:(50.8000 mm, 76.2000 mm)
Point 13:(0.0000 mm, 0.0000 mm)
Width:12.8481 inches (326.3419 mm)
Height:12.8481 inches (326.3419 mm)
