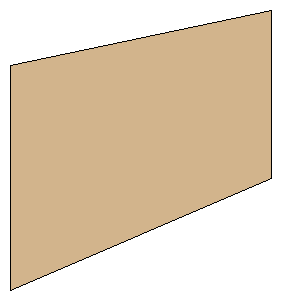

Spikor Trapezoid Fin Set Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | G10 fiberglass (LOC) |
Download as PDF | Root Chord: | 3.0000 inches (76.2000 mm) | | Tip Chord: | 2.2500 inches (57.1500 mm) | | Sweep Distance: | -0.7460 inches (-18.9484 mm) | | SemiSpan: | 3.5000 inches (88.9000 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (88.9000 mm, -18.9484 mm) | | Point 3: | (88.9000 mm, 38.2016 mm) | | Point 4: | (0.0000 mm, 76.2000 mm) | | Width: | 3.5000 inches (88.9000 mm) | | Height: | 3.7460 inches (95.1484 mm) |
