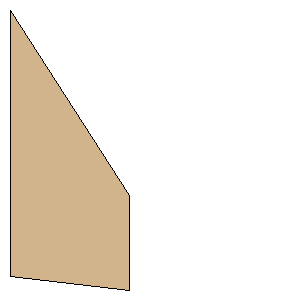

Mach Noodle Trapezoid Fin Set Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | G10 fiberglass (LOC) |
Download as PDF | Root Chord: | 4.2500 inches (107.9500 mm) | | Tip Chord: | 1.5000 inches (38.1000 mm) | | Sweep Distance: | 2.9662 inches (75.3415 mm) | | SemiSpan: | 1.9000 inches (48.2600 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (48.2600 mm, 75.3415 mm) | | Point 3: | (48.2600 mm, 113.4415 mm) | | Point 4: | (0.0000 mm, 107.9500 mm) | | Width: | 1.9000 inches (48.2600 mm) | | Height: | 4.4662 inches (113.4415 mm) |
