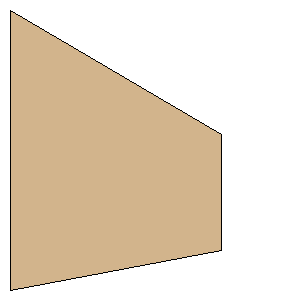

Mach Noodle Trapezoid Fin Set Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | G10 fiberglass (LOC) |
Download as PDF | Root Chord: | 1.1250 inches (28.5750 mm) | | Tip Chord: | 0.4650 inches (11.8110 mm) | | Sweep Distance: | 0.5000 inches (12.7000 mm) | | SemiSpan: | 0.8500 inches (21.5900 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (21.5900 mm, 12.7000 mm) | | Point 3: | (21.5900 mm, 24.5110 mm) | | Point 4: | (0.0000 mm, 28.5750 mm) | | Width: | 0.8500 inches (21.5900 mm) | | Height: | 1.1250 inches (28.5750 mm) |
