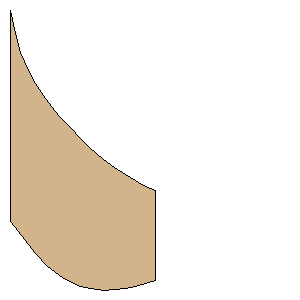

Solar-Venture Freeform Fin Set Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | G10 fiberglass |
Download as PDF | Point 1: | (0.0000 mm, 29.8266 mm) | | Point 2: | (1.6001 mm, 31.8384 mm) | | Point 3: | (3.5424 mm, 34.3325 mm) | | Point 4: | (5.1929 mm, 36.0161 mm) | | Point 5: | (7.5476 mm, 37.8371 mm) | | Point 6: | (9.9414 mm, 38.9807 mm) | | Point 7: | (11.2771 mm, 39.2812 mm) | | Point 8: | (13.2595 mm, 39.4614 mm) | | Point 9: | (14.7914 mm, 39.3713 mm) | | Point 10: | (16.3232 mm, 39.2812 mm) | | Point 11: | (17.6748 mm, 38.9207 mm) | | Point 12: | (19.0754 mm, 38.5881 mm) | | Point 13: | (20.5719 mm, 38.1733 mm) | | Point 14: | (20.5719 mm, 25.3898 mm) | | Point 15: | (18.8226 mm, 24.7170 mm) | | Point 16: | (16.9387 mm, 23.6405 mm) | | Point 17: | (15.1518 mm, 22.5210 mm) | | Point 18: | (13.7101 mm, 21.4397 mm) | | Point 19: | (12.3585 mm, 20.3584 mm) | | Point 20: | (11.0969 mm, 19.1870 mm) | | Point 21: | (9.8354 mm, 17.9255 mm) | | Point 22: | (8.6640 mm, 16.7541 mm) | | Point 23: | (7.6728 mm, 15.6728 mm) | | Point 24: | (6.9519 mm, 14.9519 mm) | | Point 25: | (5.8706 mm, 13.6003 mm) | | Point 26: | (4.9696 mm, 12.4289 mm) | | Point 27: | (4.1586 mm, 11.2575 mm) | | Point 28: | (3.2575 mm, 9.9058 mm) | | Point 29: | (2.5366 mm, 8.1938 mm) | | Point 30: | (1.5454 mm, 5.9411 mm) | | Point 31: | (0.7646 mm, 3.2632 mm) | | Point 32: | (0.0000 mm, 0.0000 mm) | | Width: | 1.1743 inches (29.8266 mm) | | Height: | 1.5536 inches (39.4614 mm) |
