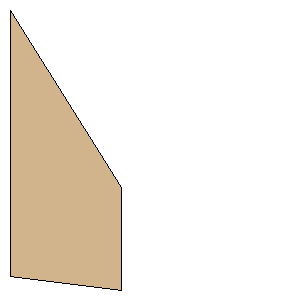

Formula98.rkt Trapezoid Fin Set Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | G10 fiberglass |
Download as PDF | Root Chord: | 10.7640 inches (273.4056 mm) | | Tip Chord: | 4.1262 inches (104.8055 mm) | | Sweep Distance: | 7.1774 inches (182.3060 mm) | | SemiSpan: | 4.4850 inches (113.9190 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (113.9190 mm, 182.3060 mm) | | Point 3: | (113.9190 mm, 287.1114 mm) | | Point 4: | (0.0000 mm, 273.4056 mm) | | Width: | 4.4850 inches (113.9190 mm) | | Height: | 11.3036 inches (287.1114 mm) |
