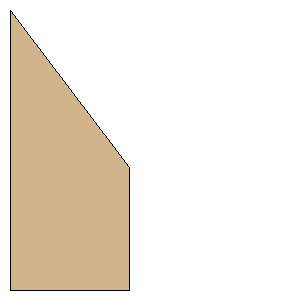

arcas.rkt Trapezoid Fin Set Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | G10 fiberglass |
Download as PDF | Root Chord: | 6.0000 inches (152.4000 mm) | | Tip Chord: | 2.6250 inches (66.6750 mm) | | Sweep Distance: | 3.3750 inches (85.7250 mm) | | SemiSpan: | 2.5500 inches (64.7700 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (64.7700 mm, 85.7250 mm) | | Point 3: | (64.7700 mm, 152.4000 mm) | | Point 4: | (0.0000 mm, 152.4000 mm) | | Width: | 2.5500 inches (64.7700 mm) | | Height: | 6.0000 inches (152.4000 mm) |
