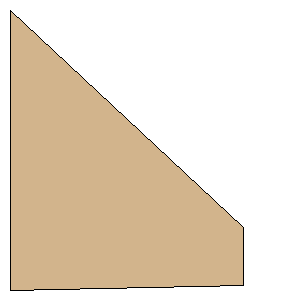

scratch_hazmat.rkt Trapezoid Fin Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | G10 fiberglass |
Download as PDF | Root Chord: | 12.0000 inches (304.8000 mm) | | Tip Chord: | 2.5000 inches (63.5000 mm) | | Sweep Distance: | 9.3252 inches (236.8601 mm) | | SemiSpan: | 10.0000 inches (254.0000 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (254.0000 mm, 236.8601 mm) | | Point 3: | (254.0000 mm, 300.3601 mm) | | Point 4: | (0.0000 mm, 304.8000 mm) | | Width: | 10.0000 inches (254.0000 mm) | | Height: | 12.0000 inches (304.8000 mm) |
