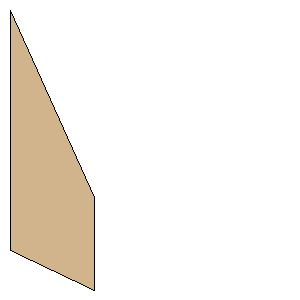

Composite Warehouse IBEX Trapezoid Fin Set Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | G10 fiberglass |
Download as PDF | Root Chord: | 7.5400 inches (191.5160 mm) | | Tip Chord: | 2.9000 inches (73.6600 mm) | | Sweep Distance: | 5.8750 inches (149.2250 mm) | | SemiSpan: | 2.6400 inches (67.0560 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (67.0560 mm, 149.2250 mm) | | Point 3: | (67.0560 mm, 222.8850 mm) | | Point 4: | (0.0000 mm, 191.5160 mm) | | Width: | 2.6400 inches (67.0560 mm) | | Height: | 8.7750 inches (222.8850 mm) |
