Rocketry Warehouse Sublime Trape Trapezoid Fin Set

Manufacturer:Custom
Part Number:
Style:Trapezoid Fin Set
Material:G10 fiberglass

Download as PDF

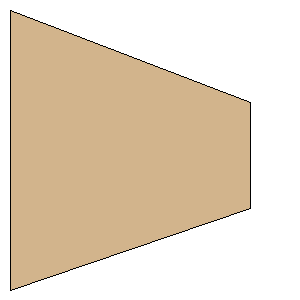

Root Chord:10.5000 inches (266.7000 mm)
Tip Chord:4.0000 inches (101.6000 mm)
Sweep Distance:3.4548 inches (87.7519 mm)
SemiSpan:9.0000 inches (228.6000 mm)
Point 1:(0.0000 mm, 0.0000 mm)
Point 2:(228.6000 mm, 87.7519 mm)
Point 3:(228.6000 mm, 189.3519 mm)
Point 4:(0.0000 mm, 266.7000 mm)
Width:9.0000 inches (228.6000 mm)
Height:10.5000 inches (266.7000 mm)
