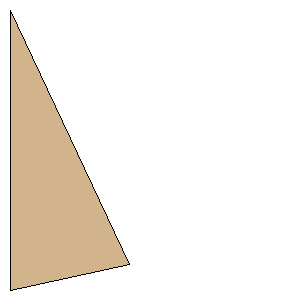

Rocketry Warehouse Broken Arrow Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | G10 fiberglass |
Download as PDF | Root Chord: | 9.1500 inches (232.4100 mm) | | Tip Chord: | 0.0000 inches (0.0000 mm) | | Sweep Distance: | 8.3300 inches (211.5820 mm) | | SemiSpan: | 3.9200 inches (99.5680 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (99.5680 mm, 211.5820 mm) | | Point 3: | (99.5680 mm, 211.5820 mm) | | Point 4: | (0.0000 mm, 232.4100 mm) | | Width: | 3.9200 inches (99.5680 mm) | | Height: | 9.1500 inches (232.4100 mm) |
