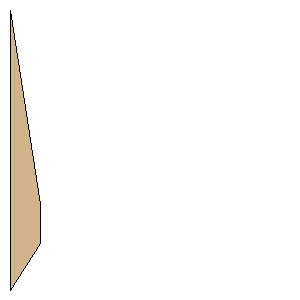

AGM600-54mm-A.rkt Trapezoid Fin Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | G10 fiberglass |
Download as PDF | Root Chord: | 20.6250 inches (523.8750 mm) | | Tip Chord: | 2.8750 inches (73.0250 mm) | | Sweep Distance: | 14.3102 inches (363.4791 mm) | | SemiSpan: | 2.2500 inches (57.1500 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (57.1500 mm, 363.4791 mm) | | Point 3: | (57.1500 mm, 436.5041 mm) | | Point 4: | (0.0000 mm, 523.8750 mm) | | Width: | 2.2500 inches (57.1500 mm) | | Height: | 20.6250 inches (523.8750 mm) |
