Rocketry Parts Database >> Fins >>

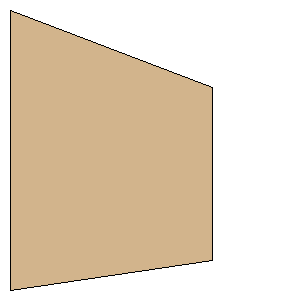

mods_vb_king_blobo.rkt Trapezoid Trapezoid Fin Set

Manufacturer:Custom
Part Number:
Style:Trapezoid Fin Set
Material:G10 fiberglass

Download as PDF

Root Chord:5.8750 inches (149.2250 mm)
Tip Chord:3.6250 inches (92.0750 mm)
Sweep Distance:1.6250 inches (41.2750 mm)
SemiSpan:4.2500 inches (107.9500 mm)
Point 1:(0.0000 mm, 0.0000 mm)
Point 2:(107.9500 mm, 41.2750 mm)
Point 3:(107.9500 mm, 133.3500 mm)
Point 4:(0.0000 mm, 149.2250 mm)
Width:4.2500 inches (107.9500 mm)
Height:5.8750 inches (149.2250 mm)
