X-17 Trapezoid Fin Set Trapezoid Fin Set

Manufacturer:Custom
Part Number:
Style:Trapezoid Fin Set
Material:G10 fiberglass

Download as PDF

Root Chord:8.9100 inches (226.3140 mm)
Tip Chord:4.9300 inches (125.2220 mm)
Sweep Distance:2.7079 inches (68.7807 mm)
SemiSpan:7.4400 inches (188.9760 mm)

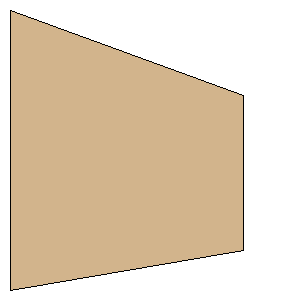

Point 1:(0.0000 mm, 0.0000 mm)
Point 2:(188.9760 mm, 68.7807 mm)
Point 3:(188.9760 mm, 194.0027 mm)
Point 4:(0.0000 mm, 226.3140 mm)
Width:7.4400 inches (188.9760 mm)
Height:8.9100 inches (226.3140 mm)
