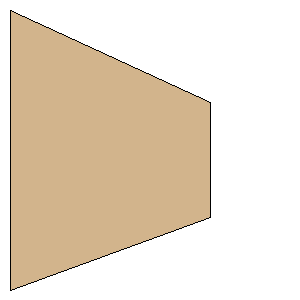

OrangeCrush.rkt Trapezoid Fin Se Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | G10 fiberglass |
Download as PDF | Root Chord: | 7.0000 inches (177.8000 mm) | | Tip Chord: | 2.8750 inches (73.0250 mm) | | Sweep Distance: | 2.3120 inches (58.7248 mm) | | SemiSpan: | 5.0000 inches (127.0000 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (127.0000 mm, 58.7248 mm) | | Point 3: | (127.0000 mm, 131.7498 mm) | | Point 4: | (0.0000 mm, 177.8000 mm) | | Width: | 5.0000 inches (127.0000 mm) | | Height: | 7.0000 inches (177.8000 mm) |
