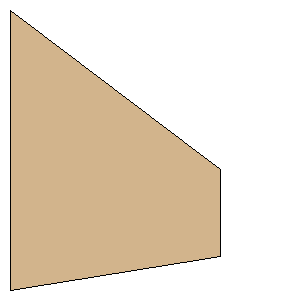

Talon 3 Trapezoid Fin Set Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | G10 fiberglass |
Download as PDF | Root Chord: | 4.0000 inches (101.6000 mm) | | Tip Chord: | 1.2500 inches (31.7500 mm) | | Sweep Distance: | 2.2755 inches (57.7977 mm) | | SemiSpan: | 3.0000 inches (76.2000 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (76.2000 mm, 57.7977 mm) | | Point 3: | (76.2000 mm, 89.5477 mm) | | Point 4: | (0.0000 mm, 101.6000 mm) | | Width: | 3.0000 inches (76.2000 mm) | | Height: | 4.0000 inches (101.6000 mm) |
