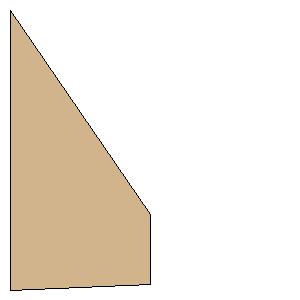

Talon 3 Trapezoid Fin Set Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | G10 fiberglass |
Download as PDF | Root Chord: | 10.0000 inches (254.0000 mm) | | Tip Chord: | 2.5000 inches (63.5000 mm) | | Sweep Distance: | 7.3054 inches (185.5572 mm) | | SemiSpan: | 5.0000 inches (127.0000 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (127.0000 mm, 185.5572 mm) | | Point 3: | (127.0000 mm, 249.0572 mm) | | Point 4: | (0.0000 mm, 254.0000 mm) | | Width: | 5.0000 inches (127.0000 mm) | | Height: | 10.0000 inches (254.0000 mm) |
